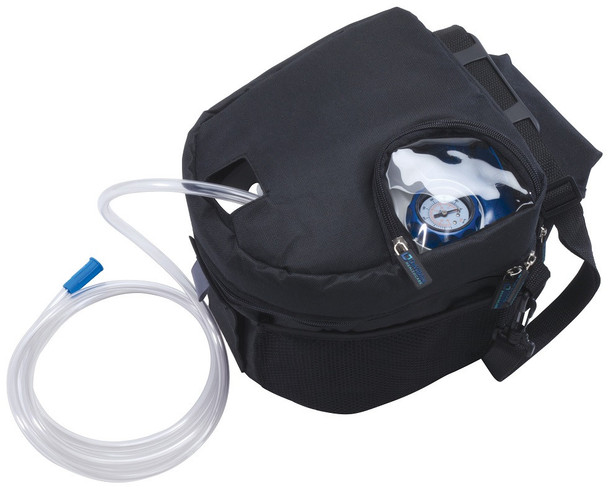

DeVilbiss 7314P-D Vacu Aide Quiet Suction Unit with Battery

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Replacement Kit 7305D-633 includes 800 ml jar, connection tubing, elbow with integrated filter, and 6' tubing
Devilbiss
MRP: $895.00
$333.95 (You save $561.05)
RRP: $895.00

Free Shipping Lowest Price Guarantee


Confused? Call 1-800-956-6616 or use Live Chat below.
Description Product Videos Specifications Find Similar Products by Tag Reviews Find similar

For more than half a century, DeVilbiss Healthcare has provided unmatched safety and performance in the airway suction device category. With the Vacu-Aide QSU, DeVilbiss brings you the same reliable, portable operation in a significantly quieter unit. With more than 50% reduction in sound, the Vacu-Aide QSU is the quietest high flow/high suction portable unit on the market, making it a smart choice for patients from neonate to adult.

  • Vacuum adjustment allows for 50-550 mm Hg and a free flow of 27 liters/minute
  • Sealed lead acid battery for use up to one-hour operation
  • Meets American Association for Respiratory Care (AARC) guidelines for neonatal, infant, child and adult homecare suctioning
  • Can return a patient to a state of comfort quickly – Meets ISO 10079-1:2009 high vacuum, high flow classification
  • Unit can be operated while inside the carrying case
  • Float shutoff on container to protect against overflow and integrated bacteria filter to prevent back flow
  • New, innovative container assembly features integrated bacteria filter
  • Container and filter design maintains appropriate flow rate to meet ISO guidelines
  • New Intergrated gauge and flow regulator - easy to turn knob conveniently placed around gauge for easy use and control
  • Equipped with a switch mode power supply, allowing operation on any AC voltage (100-240 VAC, 50/60 Hz)
  • Low battery and charge indicator lights
  • Complete with AC and DC power cords, internal battery and carrying case
  • Rechargeable, internal battery operates up to one hour when fully charged
  • Single person use collection jar and 6' suction tubing for quick and easy replacement (1 set included)
  • Collection jar has 800 ml (cc) capacity with 6 foot suction tubing
  • Suction catheter not included
  • Replacement Collection Bottle Kit available as option:
  • Kit includes 800 ml (cc) collection jar, bacteria filter and elbow
  • Replacement Kit is recommended to change every 1-2 months with regular use

To speak with a customer service representative, call 1-800-956-6616

Physician's Prescription Required
For your convenience, you may have your physician fax the prescription to 800-956-6282

Product Dimensions:

8.3"H x 8.0"W x 8.5"D
Product Dimensions in Case: 8.5"H x 9.0"W x 12"D
Suction Unit Weight: 6.6 lbs.
Sound Level: 55 dBA (53 dBA while in case)
Vacuum Range: 50-550 mmHg*
Operating Flow Rate: 0-27 lpm*
Electrical Requirements: 100-240 VAC, 50/60 Hz, 1.2 A max, 12 V
Power Consumption: 33 W maximum
Approvals: IEC 601-1, CAN/CSA-C22.2 No. 601.1-M90, CE EN 60601-1-2, UL2601-1, ISO10079-1:1999
Operating Temperature Range: 32°F-104°F
Operating Relative Humidity: 0-95%
Operating Atmospheric Pressure: 10.2-15.4 Psi (70-106 kPA)
Operating Mode: Intermittent: 30 min. ON, 30 min. OFF
Collection Jar Capacity: 800 ml (cc)
Battery Use: Up to 1 hour when fully charged
Limited Warranty
Suction Unit: 2 years
Internal Battery: 90 days


* Conditions may vary based on altitude above sea level, barometric changes and system configuration.

Product Dimensions:

8.3"H x 8.0"W x 8.5"D
Product Dimensions in Case: 8.5"H x 9.0"W x 12"D
Suction Unit Weight: 6.6 lbs.
Sound Level: 55 dBA (53 dBA while in case)
Vacuum Range: 50-550 mmHg*
Operating Flow Rate: 0-27 lpm*
Electrical Requirements: 100-240 VAC, 50/60 Hz, 1.2 A max, 12 V
Power Consumption: 33 W maximum
Approvals: IEC 601-1, CAN/CSA-C22.2 No. 601.1-M90, CE EN 60601-1-2, UL2601-1, ISO10079-1:1999
Operating Temperature Range: 32°F-104°F
Operating Relative Humidity: 0-95%
Operating Atmospheric Pressure: 10.2-15.4 Psi (70-106 kPA)
Operating Mode: Intermittent: 30 min. ON, 30 min. OFF
Collection Jar Capacity: 800 ml (cc)
Battery Use: Up to 1 hour when fully charged
Limited Warranty
Suction Unit: 2 years
Internal Battery: 90 days


* Conditions may vary based on altitude above sea level, barometric changes and system configuration.
