Description
Mattress is 42"W x 80"L x 10"H ••• High flow pump includes adjustable firmness, cycle time, auto firm and static modes ••• Cell on cell design prevents bottoming out ••• Alternating pressure and low air loss ••• Fluid resistant, vapor permeable quilted cover ••• Weight capacity is 800 lbs.

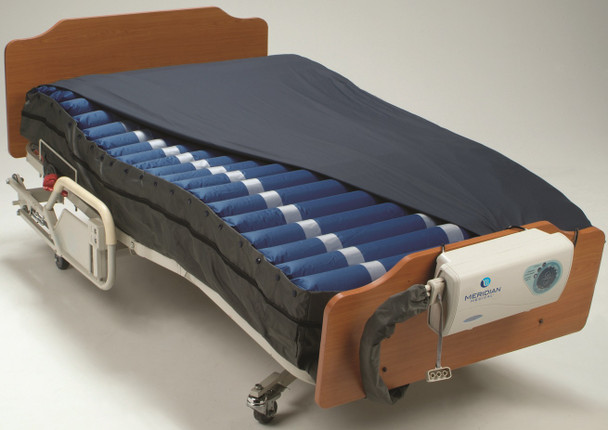

The Meridian Ultra-Care Xtra Bariatric Mattress System 4840-42 is a combination mattress system providing both alternating pressure and low air loss for the management and treatment of pressure ulcers for patients up to 800 lbs. This system features Stay-Flate™ cell-on-cell air bladder construction to provide a full ten inches of therapeutic support with bottom-out protection in the event of a power failure. In addition to the alternating pressure mode, the static mode provides a firm surface when needed. Regardless of the operating mode, the mattress maintains the low air loss benefit.
Mattress Features
- Includes 10" high mattress, cover and high output (12 lpm) digital pump
- Stay-Flate™ cell-on-cell design prevents "bottoming out" and up to 24 hours of power outage protection
- Pillow function maintains air in cells at head in static mode (non-alternating) for patient comfort
- Twenty (20) rows of 10" high air cells, 9 with laser holes for low air loss benefit
- Ventilated "low air loss" cells provide a microclimate that reduces moisture
- Air cells made of nylon/polyurethane for increased durability and reliability
- CPR quick deflate at head of mattress
- Quick disconnects air cells allow for easy cell replacement
- Quick disconnect cells allow any area of mattress to be deflated and be zero pressure without affecting alternating benefits
- Quilted nylon zippered cover is low shear, fluid-resistant, easy to clean, and vapor permeable
- Overall dimensions 80" x 36" x 8"
- Supports patients up to 800 lbs.
- Limited 2 year warranty
Pump Features
- Digital high flow 12 liter per minute pump provides static and alternating pressure therapy for maximum comfort
- Maintains low air loss benefit regardless of operating mode
- Five (5) comfort settings for maximum comfort
- Automatic reset from static to alternating after 45 minutes
- 10, 15 or 20 minute cycle times
- Autofirm mode for easier patient transfers on and off the bed
- Retractable hooks for bed use
- Limited 2 year warranty
Manufacturer Resources
To speak with a customer service representative, call 1-800-956-6616
- 12 LPM pump alternately inflates and deflates air cells
- Cell on cell design prevents bottoming out
- Adjust firmness and cycle time
- Auto firm mode for patient transfers
- Fluid resistant, low shear quilted cover
- Mattress is 42"W x 80"L x 10"H
- Weight capacity is 800 lbs.
Specifications
| PUMP | |
| Electrical Power: | 120 VAC, 60 Hz, 1 A |
| Fuse Rating: | 250 V, 1 A |
| Power Cord: | SJT 14 feet, 3 prong |
| Air Output: | 12 LPM |
| Indicator Lights: | Power Fail Low Pressure Mode Selection Comfort Level Cycle Time |
| Pressure Range: | 20 - 50 mmHg |
| Cycle Time: | 10, 15 or 20 minutes |
| Dimensions: | 15.75"L x 5.5"W x 8"H |
| Weight: | 7.9 lbs. |
| Mode of Operation: | Alternating Pressure/ Low Air Loss Static/ Low Air Loss Autofirm |
| Safety Code Approval: | UL 544 & CSA |
| Limited Warranty: | 2 years |
| MATTRESS | |
| Dimensions: | 42"W x 80"L x 10"H |
| Cells: | 20 Rows 10"H Air Cells9 cells w/ laser holes |
| Inflation Time: | 25 - 30 minutes |
| Weight: | 25 lbs. |
| Cover: | Urethane Coated Nylon Vapor Permeable Water Resistant Low Shear/ Low Friction |
| Weight Capacity: | 800 lbs. |
| Limited Warranty: | 2 years |
Additional Information
Mattress Features: |
Alternating Pressure |
Mattress Features: |
Low Air Loss |
Mattress Height: |
10" |
Mattress Width: |
42" |
Mattress Length: |
80" |
User Weight: |
700 - 800 lbs. |
User Weight: |
600 -700 lbs. |
User Weight: |
500 - 600 lbs. |
User Weight: |
400 - 500 lbs. |
User Weight: |
Up to 400 lbs. |
Pump Flow Rate: |
8 - 12 lpm |
_nonreturnable: |
yes |
Pump Features: |
Digital Display |
Pump Features: |
Auto Firm |
