Description
8 LPM pump alternately inflates and deflates air bladders ••• 4" cell-on-cell base holds air in case of power failure ••• Low air loss helps keep skin cool and dry ••• Adjust pressure on pump for individual comfort ••• Fluid-resistant cover ••• Alternating pressure mattress helps prevent and treat pressure sores ••• Supports up to 350 lbs. ••• Mattress dimensions: 36"W x 80"L x 8"H

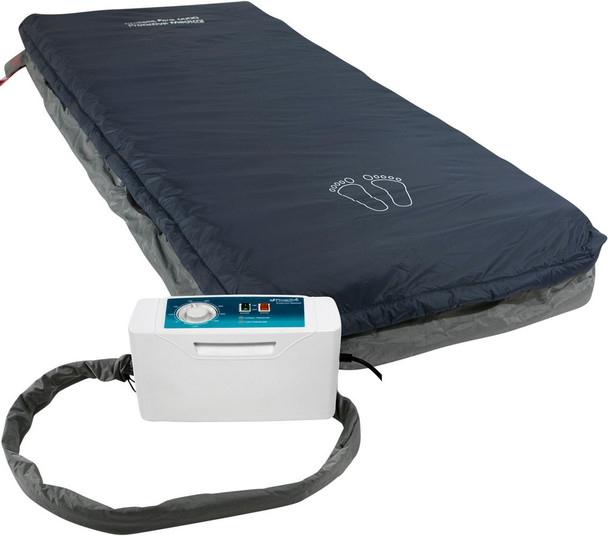

The Protekt® Aire 3600 combines dual therapies of low air loss and alternating pressure in one unit. The durable & powerful, yet quiet user friendly pump is designed to treat pressure ulcers stages I-III. The Protekt® Aire 3600 mattress features a unique cell-on-cell design incorporates a one-way valve which will hold air in the 4" of the cells in the event of a power failure. The Protekt® Aire 3000 pump alternates in 10 minute intervals and the adjustable air flow dial provides custom pressure settings for each patients individual requirements.
PROTEKT® AIRE 3000 PUMP FEATURES
- Pump alternately inflates and deflates air cells in mattress overlay to create different patient support points
- Provides low air loss and alternating pressure therapies in one system
- 8 LPM pump alternately inflates and deflates air bladders
- Low air loss function helps keep skin cool and dry
- Air flow dial to obtain custom patient comfort and pressure levels
- Preset 10 minute alternating cycle time
- Static function for safe and easy patient transfer
- Visual low pressure alarm
- Adjustable hanging brackets
- Lighted On/Off switch and hanging bed hooks
- Limited 18 month warranty
MATTRESS & COVER FEATURES
- Unique cell-on-cell design incorporates a one way valve which will hold air in the lower 4" of the cells in the event of a power failure
- 20 individual air bladders
- 18 laser holes in air bladders allow low air loss to keep the patient cool and dry
- Pillow top feature prevents head and neck from unnecessary movement during alternating mode
- Removable, fluid resistant, non-shear, anti-microbial/anti-bacterial nylon and quilted cover
- Non-skid bottom cover prevents the mattress from slipping
- Transport connector locks in air for easy patient transfers
- CPR valve provides rapid deflation of mattress
- Kink resistant tubing
- Overall dimensions: 36”W x 80”L x 8"H
- Easy to set up and operate
- Weight capacity is 350 lbs.
- Limited 18 month warranty
CLICK HERE FOR OWNER'S MANUAL
To speak with a customer service representative, call 1-800-956-6616
- Alternating pressure mattress helps prevent and treat pressure sores
- Cell-on-cell design holds air in lower 4" of cells in case of power failure
- 8 LPM pump alternately inflates and deflates air bladders
- Low air loss function helps keep skin cool and dry
- Adjust pressure on pump for individualized comfort
- Mattress dimensions: 36"W x 80"L x 8"H
- Supports up to 350 lbs.
Specifications
| Power Supply: | 120 V, 60Hz |
| Air Output: | 8 LPM |
| Pressure Range: | 30 mmHg - 60 mmHg |
| Cycle Time: | 10 min. |
| Fuse: | 250 V, 1 A |
| Pump Dimensions: | 11" x 5.9" x 3.5" |
| Pump Weight: | 3 lbs. |
| Mattress Dimensions: | 80"L x 36"W x 8"H |
| Mattress Construction: | Top Cover: Nylon/ PU Air Cells: Nylon/ TPU w/ Cell-on-Cell base Botton Cover: Nylon/ PVC 840D |
| Weight Capacity: | 350 lbs. |
| Limited Warranty: | Pump: 18 months Mattress: 18 months |
Additional Information
Mattress Features: |
Alternating Pressure |
Mattress Features: |
Low Air Loss |
Mattress Height: |
8" |
Mattress Width: |
35" - 36" |
Mattress Length: |
80" |
User Weight: |
Up to 400 lbs. |
Pump Flow Rate: |
8 - 12 lpm |
