Description
9 LPM pump alternately inflates and deflates air bladders ••• Low air loss helps keep skin cool and dry ••• 5" air mattress with 3" foam base ••• Adjust pressure on pump for individualized comfort ••• Alternating pressure mattress helps prevent and treat pressure sores ••• Supports up to 350 lbs. ••• Mattress dimensions: 36"W x 80"L x 8"H

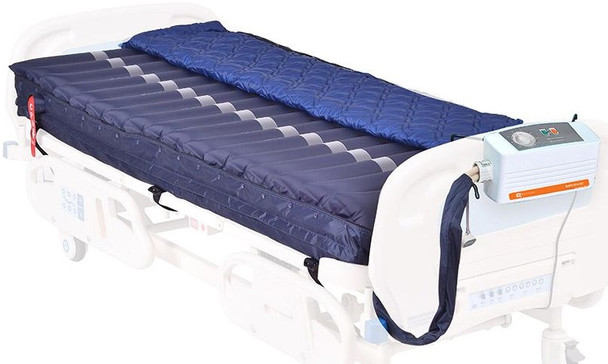

The SoftCaire EC pump and mattress system is indicated for the prevention and treatment of all stage pressure ulcers when used in conjunction with a comprehensive pressure ulcer management program. It can be used in a hospital, homecare, or other healthcare environment. SoftCaire EC mattress system comes with an 5" air cell mattress that provides low air loss, alternation and static pressure redistribution therapy on top of a 3" foam base.
Features:
- Pump alternately inflates and deflates air cells in mattress
- Provides low air loss and alternating pressure therapies in one system
- 9 LPM pump alternately inflates and deflates air bladders
- Low air loss function helps keep skin cool and dry
- Pressure adjustment knob suited to the patient's weight
- 10 minute alternating cycle time
- Static mode for easier patient transfers on and off the mattress
- Quick connector with cap ensures mattress remains inflated during power outage or patient transport
- CPR function allows rapid deflation in case of medical emergencies
- Pillow function of three fully inflated static air cells (non-alternating) at the head end provides patient comfort
- Visual low pressure indicator
- Lighted On/Off switch and hanging bed hooks
- Overall inflated mattress dimensions: 35.5"W x 80"L x 8"H
- Includes nylon, polyurethane quilted cover with zipper
- Limited 1 year warranty
CLICK HERE FOR OWNER'S MANUAL
To speak with a customer service representative, call 1-800-956-6616
- 9 LPM pump alternately inflates and deflates air cells
- Low air loss helps keep skin cool and dry
- Adjust pressure for individual comfort
- 5” air mattress with 3” foam base
- Mattress dimensions: 35.5"W x 80"L x 8"H
- Supports up to 350 lbs.
Specifications
| Power Supply: | 120 V, 60Hz |
| Fuse Rating: | 250 V, 1 A |
| Air Output: | 9 LPM |
| Pressure Range: | 30 mmHg - 60 mmHg |
| Cycle Time: | 10 min. |
| Pump Dimensions: | 10.83" x 6.10" x 3.94" |
| Pump Weight: | 5.5 lbs. |
| Mattress Dimensions: | 80"L x 35.5"W x 8"H |
| Air Structure: | 17 x 5"H cells |
| Mattress Construction: | Cover: Nylon/ PU, Quilted Air Cells: Nylon/ PVC, 5"H, 17 each Base: Nylon/ PVC w/ 3"H Foam |
| Operating Temperature: | 50°F - 95°F |
| Operating Humidity: | 20% - 80% non-condensing |
| Storage Temperature: | 5°F - 122°F |
| Flame Retardant: | CA 117, CFR 1632 |
| Weight Capacity: | 350 lbs. |
| Limited Warranty: | Pump: 1 year Mattress: 1 year |
Additional Information
Mattress Features: |
Alternating Pressure |
Mattress Features: |
Low Air Loss |
Mattress Features: |
Foam Base |
Mattress Height: |
8" |
Mattress Width: |
35" - 36" |
Mattress Length: |
80" |
User Weight: |
Up to 400 lbs. |
Pump Flow Rate: |
8 - 12 lpm |
